How to Use a Multimeter Like a Pro: The Ultimate Guide

July 23, 2025 6 min read

A multimeter might seem intimidating at first glance, but it's one of the most valuable tools for anyone working with electronics. Whether you're a DIY enthusiast, professional electrician, or just someone who wants to troubleshoot electrical issues around the house, mastering your multimeter will save you time, money, and frustration.

Understanding Basic Multimeter Symbols and Functions

Every multimeter has different features, but there are standard measurements and symbols that remain consistent across most units. Here's a comprehensive reference table of all multimeter symbols and their meanings:

Symbol	Name	Measures	Units	Common Uses
V	Voltage	Electrical potential difference	Volts (V)	Testing batteries, outlets, circuits
~ or AC	Alternating Current Voltage	AC voltage	Volts AC	Household outlets, wall adapters
⎓ or DC	Direct Current Voltage	DC voltage	Volts DC	Batteries, electronic devices
Ω	Ohms/Resistance	Electrical resistance	Ohms (Ω)	Testing resistors, wire continuity
))) or 🔊	Continuity	Circuit continuity with audible tone	Beep/Tone	Finding breaks in wires, testing fuses
⎍ or ├┤	Capacitance	Electrical charge storage capacity	Farads (F)	Testing capacitors
▷ or ┤├	Diode	Forward voltage drop of diodes	Volts	Testing diodes, LED polarity
Hz	Frequency	Electrical signal frequency	Hertz (Hz)	AC frequency testing, signal analysis
% or DUTY	Duty Cycle	Percentage of time signal is "on"	Percent (%)	Square wave analysis
A	Amperage/Current	Electrical current flow	Amperes (A)	Measuring current draw
mA	Milliamperage	Small current measurements	Milliamperes (mA)	Low current circuits
µA	Microamperage	Very small current measurements	Microamperes (µA)	Sensitive electronic circuits
°C or °F	Temperature	Surface or ambient temperature	Celsius/Fahrenheit	Temperature monitoring
hFE	Transistor Gain	Current amplification factor	Ratio	Testing transistor performance
NCV	No Contact Voltage	Voltage detection without contact	Alert/Beep	Safety voltage detection

Measurement Unit Prefixes:

Prefix	Symbol	Value	Example
Mega	M	1,000,000	2.5M = 2,500,000
Kilo	k	1,000	21.6k = 21,600
Milli	m	0.001	500m = 0.5
Micro	µ	0.000001	230µ = 0.00023
Nano	n	0.000000001	50n = 0.00000005

Voltage Measurement: The Foundation of Electrical Testing

Voltage is represented by a capital V on your multimeter and allows you to measure the electrical potential of power lines and devices. There are two main types of voltage you'll encounter:

AC Voltage (Alternating Current)

Symbol: Wave sign (~)
Common uses: Household outlets, wall adapters
Typical readings: 100-240 volts depending on your location

DC Voltage (Direct Current)

Symbol: Two lines (one solid, one dotted)
Common uses: Batteries, electronic devices
Typical readings: 1.5V to 18V for common batteries

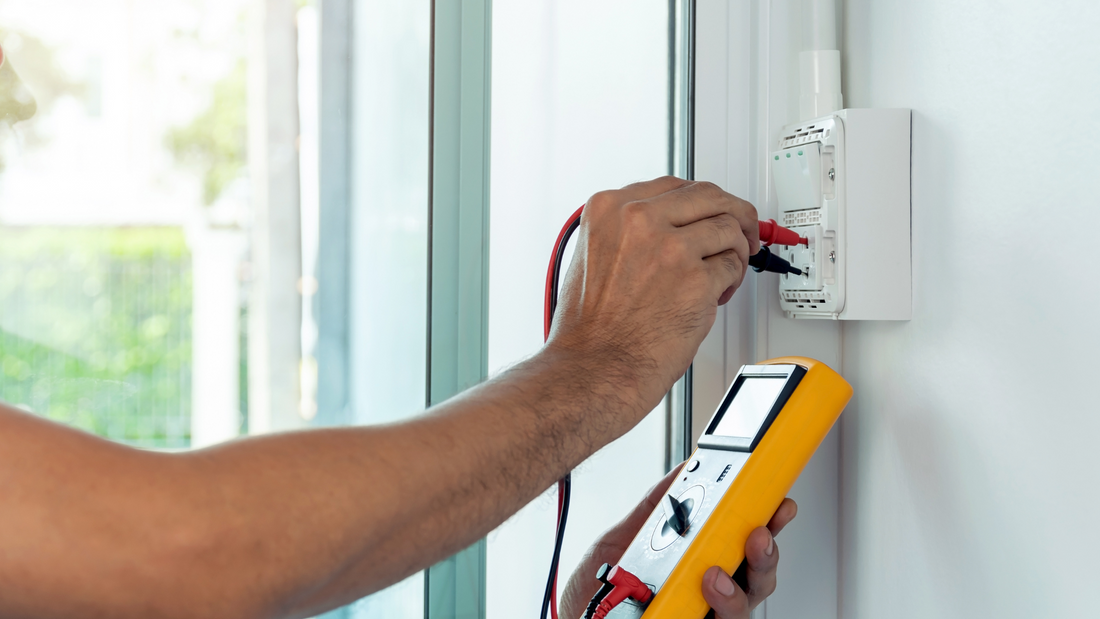

Safety First: When testing AC voltage from household outlets, exercise extreme caution. High voltage can cause death and serious injuries. Many experts recommend using only one hand when testing to avoid completing a circuit through your chest.

Testing a Battery

Testing a battery is straightforward and safe. Most devices have labels indicating their voltage and current type. For example, an 18V battery will be clearly marked. Simply:

Set your multimeter to DC voltage
Place the red probe on the positive terminal
Place the black probe on the negative terminal
Read the voltage

If the reading doesn't match the device requirements, there's likely an issue with your battery or device.

Resistance Measurement (Ohms)

Resistance, measured in ohms (Ω), indicates how difficult it is for electrical current to pass through a material. This measurement is incredibly useful for troubleshooting circuits and testing components.

Practical Examples:

Copper wire: Nearly zero resistance (excellent conductor)
Rubber: "OL" or open loop reading (excellent insulator)
Resistors: Specific values (e.g., 21,600 ohms or 21.6kΩ)

Important Note: When testing resistors in a circuit, you may get false readings due to other paths with less resistance. Always isolate components when possible for accurate readings.

Continuity Testing: Your Circuit Detective

The continuity function is one of the simplest yet most surprisingly useful features on a multimeter. It produces an audible tone when it detects a complete electrical path with low resistance.

Common Applications:

Wire integrity testing: Check if internal wiring is broken without cutting it open
Circuit tracing: Identify which pin connects to which circuit
Fuse testing: Quickly determine if a fuse has blown

Simply place your probes on both ends of what you're testing. A tone indicates good continuity; silence means there's a break in the circuit.

Advanced Multimeter Functions

Capacitance Testing

Capacitors store energy for later use in high-demand applications. The capacitance function is represented by the capacitor symbol and measures in farads (F).

Critical Safety Warning: Capacitors can store dangerous high voltages even when disconnected from power. Exercise extreme caution when testing them.

Most capacitors are measured in microfarads (µF). For example, a typical capacitor might read 230 microfarads, which falls within standard tolerances.

Diode Testing

Diodes allow current to flow in only one direction. When testing:

Place probes on the diode - you should get a reading
Reverse the probes - you should get no reading (open loop)
If you get readings in both directions or no readings in either direction, the diode is damaged

Frequency Measurement (Hz)

Frequency measures the speed of an electrical generator or the frequency of alternating current waves. Most household electricity operates at 50-60 Hz depending on your location.

Duty Cycle

This tells you what percentage of time there's positive current. Standard alternating current typically shows 50% duty cycle (50% on, 50% off).

Temperature and Specialized Functions

Many multimeters include temperature probes for measuring surface or ambient temperature. These usually come as separate probes that connect to your meter.

Some advanced meters include HFE (Hybrid parameter Forward current gain) for testing transistors, though this requires specialized adapters and knowledge of transistor specifications.

Amperage Testing: Two Methods

Testing amperage (current flow) can be done two ways:

In-Series Testing

Requires breaking the circuit and connecting through your multimeter
Limitations: Usually limited to 10 amps for no more than 10-20 seconds
Risk: Exceeding limits will blow internal fuses

Clamp Testing (Safer Method)

Uses a clamp meter to measure current around a single wire
Key Point: You must isolate one wire - clamping both positive and negative wires will cancel out and give zero reading
Much safer and easier than in-series testing

No-Contact Voltage (NCV)

Many clamp meters include NCV functionality, which alerts you when approaching live voltage. While useful as an extra safety feature, don't rely solely on this for safety verification.

Understanding Measurement Units

To fully utilize your multimeter, you need to understand measurement prefixes:

M (capital) = Million
k (capital K) = Kilo (1,000)
m (lowercase) = Milli (1/1,000)
µ (micro symbol) = Micro (1/1,000,000)
n (lowercase) = Nano (1/1,000,000,000) - rarely seen

Auto-Ranging vs Manual-Ranging Meters

Auto-Ranging Meters

Automatically select the appropriate measurement range
Easier to use, especially for beginners
More expensive but greatly increase ease of use

Manual-Ranging Meters

Require you to select the correct range
How to use: Start at the highest range, then turn the dial down until you get a reading
If you see "1" or "OL", you've gone too far - move to a higher range
Less expensive but require more knowledge

Additional Helpful Features

Max/Min/Average Functions

When activated, these store and display the maximum, minimum, or average values reached since activation - useful for monitoring fluctuating readings.

Hold Function

Freezes the current display, allowing you to record values for reference without continuously watching the screen.

Built-in Light

Most modern meters include LED lights for working in dark conditions.

Choosing the Right Multimeter

When selecting a multimeter, consider these factors:

Essential Features to Consider:

Required functions: Voltage, resistance, continuity are basics - determine if you need capacitance, frequency, temperature, etc.
True RMS capability: Corrects for wave distortions that can cause up to 40% error rates
Auto-ranging: Increases ease of use significantly
Safety ratings: Ensure voltage ratings exceed your needs (most handle up to 500V)
Build quality: Consider how often you'll use it and in what conditions

Budget Considerations:

Professional use: Invest in true RMS, auto-ranging with comprehensive features
Occasional use: Manual-ranging meters can be perfectly adequate and cost-effective
Safety-critical work: Never compromise on safety ratings and build quality

Safety Reminders

Never exceed voltage ratings on your device
Use extreme caution with AC voltage testing
Be aware of capacitor dangers - they can store lethal charges
Don't rely solely on NCV for safety verification
Understand your meter's limitations - amperage limits, time restrictions, etc.

Conclusion

Mastering your multimeter opens up a world of electrical troubleshooting and understanding. Start with the basics - voltage, resistance, and continuity testing - then gradually explore advanced features as your needs grow. Remember that safety always comes first, and when in doubt, consult a qualified electrician for high-voltage or complex electrical work.

With practice, your multimeter will become an indispensable tool that can diagnose everything from dead batteries to complex circuit problems, saving you time and money while keeping you safe in the process.
