- Tests both RJ45 LAN cables and BNC coaxial cables for continuity and sequence
- Includes detachable master and remote unit for testing across long cable runs
- Pin-by-pin LED indicators plus dedicated BNC test light
- Compatible with common wiring layouts: EIA/TIA 568A/B, Token Ring, AT&T 258A, and TP-PMD
- Slide switch toggles ON, OFF, and slow-scan testing modes for clear signal display

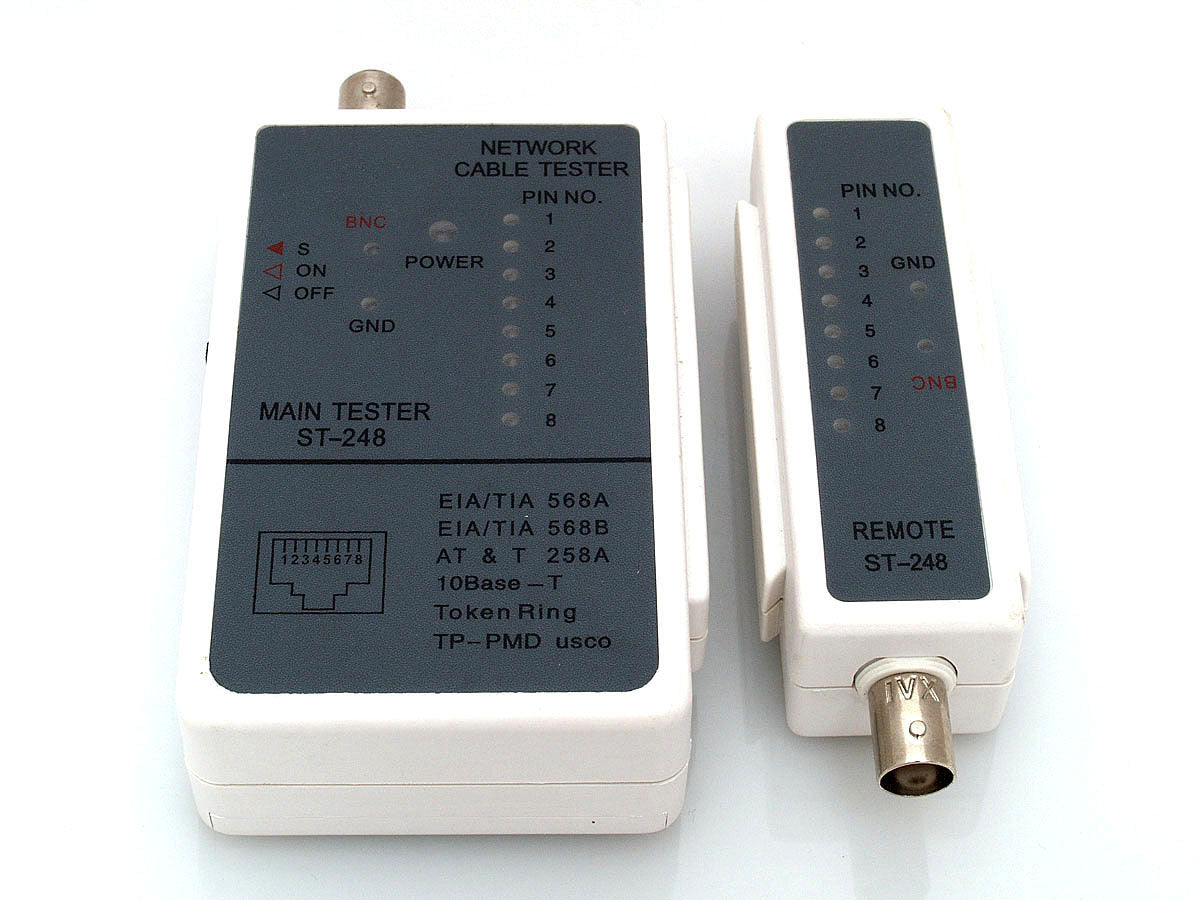

The JCM 60-CT2 cable tester supports both RJ45 and BNC coaxial cable testing. The device includes a master and detachable remote unit. Test results are shown through pin-by-pin LEDs and a dedicated BNC indicator light. It supports standard network wiring configurations including EIA/TIA 568A/B, AT&T 258A, Token Ring, and TP-PMD. This tester verifies continuity and detects incorrect sequences for both LAN and coaxial cables. Switch modes include OFF, ON, and SLOW for flexible testing. CE marked.
